Haltech NEXUS Rebel JZ: The Easiest Way to Wire a JZ Swap (And What It Won't Do)
JZ swap people, this one's for you. Haltech just dropped the NEXUS Rebel JZ (HT-220205), and it's exactly what it sounds like: a complete, purpose-built ECU kit designed from the ground up for Toyota's legendary JZ platform. Not an adapted universal ECU, not a plug-and-play box for a chassis you're not even using — an engine management kit built specifically for 1JZ and 2JZ swaps, with a terminated harness and a full sensor pack in the box. If you've ever priced out a standalone ECU plus a custom harness plus sensors plus the hours of wiring labor, you already understand why this kit is a big deal. But we're also going to cover what it does NOT support, because that list matters just as much as the spec sheet, and we'd rather you know before you buy than after.
What You're Actually Getting

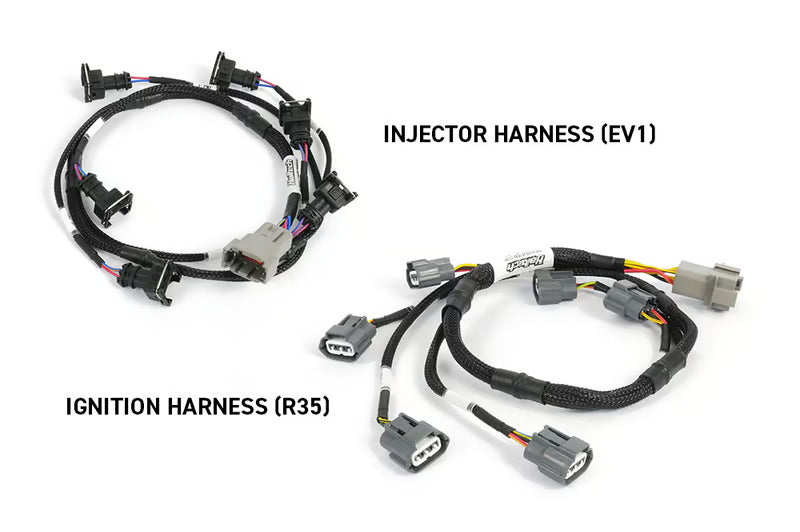

This is the part that separates the Rebel JZ from buying an ECU à la carte. The kit includes the Nexus Rebel JZ ECU, a fully terminated main harness built for the JZ, a cable throttle sub-harness, an injector harness (EV1 style), an R35 coil-on-plug ignition harness, and a Toyota R154 transmission harness. Haltech even throws in three different alternator harnesses — Denso, Bosch, and Tundra — so whichever charging setup your swap runs, you're covered out of the box. Then there's the sensor pack, which is legitimately generous: a Bosch LSU 4.9 wideband with weld-on fitting, an air temp sensor with weld-on fitting, two Bosch knock sensors with adaptors, and a 150 PSI pressure sensor for fuel or oil with the fitting adapter included. That's the stuff people always forget to budget for, already in the box. First startup runs through the Set-up Wizard in Haltech's NSP software, which walks you through configuration step by step — this is genuinely one of the fastest paths from "engine in the bay" to "engine running" that exists for a JZ right now.
Engine Compatibility: Nearly the Whole JZ Family
The Rebel JZ supports six variants: 1JZ-GTE non-VVT-i, 1JZ-GE VVT-i, 1JZ-GTE VVT-i, 2JZ-GTE non-VVT-i, 2JZ-GE VVT-i, and 2JZ-GTE VVT-i. That covers everything from the budget non-turbo GE you're planning to boost later to the VVT-i GTE you pulled from an Aristo. One important line in the fine print: this kit is for manual transmissions only, and the included transmission harness is built for the R154. If you're running an automatic or planning a built auto for drag duty, this isn't your ECU — look at the Elite or full Nexus range instead. Also note the ignition harness is designed around an R35 GT-R coil conversion, which has become the standard for JZ builds anyway thanks to how much spark energy those coils deliver under boost. If you haven't done the coil conversion yet, Haltech sells the complete R35 coil bracket kit (HT-120200) with brackets, coils, and connectors separately — factor it into your build budget.
The Notes Section: What the Rebel JZ Does NOT Support
Here's the part most product write-ups bury, and we're putting it front and center because nothing ruins a build like finding out mid-install. The Rebel JZ does not support: Toyota's ETCS-i electronic throttle system (the "semi drive-by-wire" setup found on later VVT-i engines — you'll need to convert to a cable throttle, which is why the kit includes a cable throttle sub-harness), distributor ignition systems (early non-turbo JZs — you need coil-on-plug), wasted spark ignition setups, low impedance injectors (if you're running old-school low-Z injectors, upgrade to modern high impedance units, which you should be doing on a fresh build anyway), the factory sequential twin turbo system on the 2JZ-GTE (if you're still running stock sequential twins, this ECU expects a single turbo or true parallel conversion), and the 1JZ's OEM coolant temperature sensor (plan on a compatible replacement sensor). Read that list twice. None of these are dealbreakers for the typical swap — most JZ builds already delete the sequential twins, convert the throttle, and run modern injectors — but if your build keeps any of that factory hardware, you need to address it before this ECU goes in.
Who This Kit Is For
If you're dropping a JZ into a 240SX, an FC, a Cressida, a BMW, a Miata, or honestly anything with an engine bay big enough, and you're running a manual box with a single turbo setup — this kit was designed for your exact life. It kills the two biggest headaches of a swap: sourcing a proper harness and piecing together sensors. It also plays perfectly with the rest of the Haltech ecosystem, so if you're already eyeing an iC-7 or uC-10 dash (we compared those two right here on the blog), a PDM, or CAN accessories, everything integrates over one network without adapter gymnastics. At $2,495 for the ECU, harness, and complete sensor pack, price it against a universal ECU plus custom harness labor and it makes a strong case for itself. Standard reminder: like all Haltech engine management, the Rebel JZ is intended for sanctioned off-road and competition use — check your local emissions regulations before installing. Got a JZ swap in progress and not sure if your setup clears the compatibility list? Reach out — walking through builds is our favorite part of this job.
