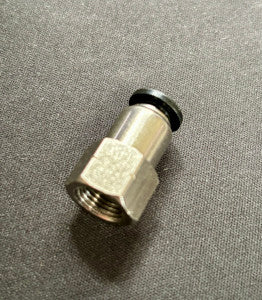

1/8 NPT Female Push To Connect Fitting

1/8 NPT Female Push To Connect Fitting.

Use it to connect a pressure transducer to a 1/4 OD poly line and place the sensor out of the vibrations of thew engine.

• Type:1/4" OD x 1/8" NPT Thread Push to Connect Fittings; Body Style: Female Straight
• 1/4 inch Air line Fittings Fluid Admitted: Air, Water (No Freezing)
• 1/4 Quick Connect fittings Working Pressure:0-1.0mpa | 0-150psi; Proof Pressure:3.0Mpa | 435psi; Negative Pressure:-100Kpa | -29.5 In Hg
• 1/4" od Pneumatic tube Fittings Applicable: Pipe PU/ PA/ PE/ PVC; Working Temperature: 0-60°C | 32～140°F
• 1/8 air bag fittings is made of Nickel Plated Brass and quality plastic- corrosion resistance, ductility
