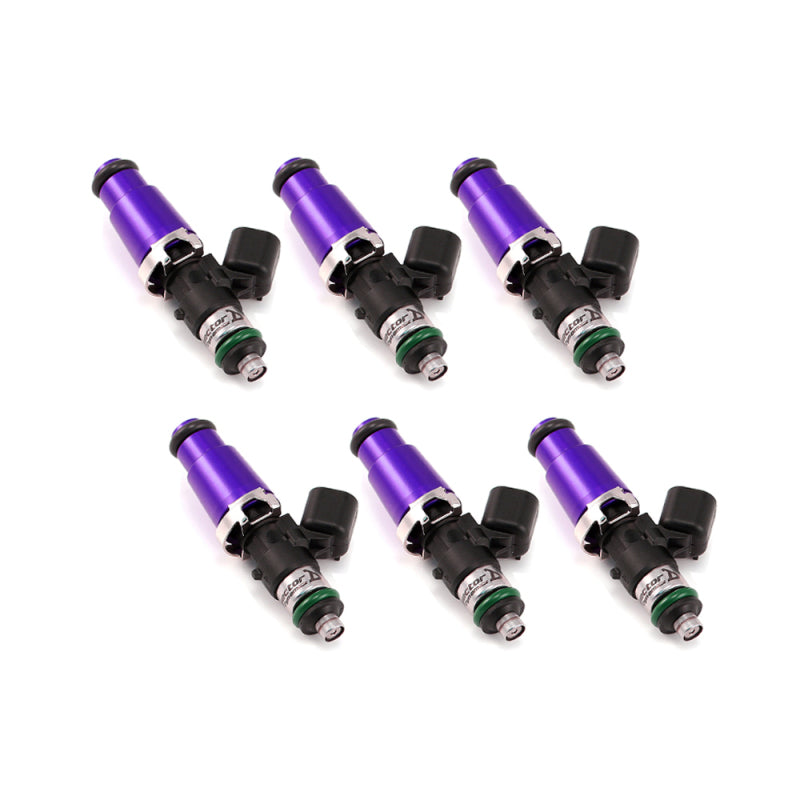

Injector Dynamics 1750-XDS - 60mm Length - 14mm Purple Top - 14mm Lower O-Ring (Set of 6)
3-6 days on most orders (United States).
Return within 30 days of purchase. Duties & taxes are non-refundable.
Guarantee Safe Checkout
Injector Dynamics 1750-XDS - 60mm Length - 14mm Purple Top - 14mm Lower O-Ring (Set of 6)
Injector Dynamics 1750-XDS - 60mm Length - 14mm Purple Top - 14mm Lower O-Ring (Set of 6)
The ID1700-XDS was designed to be an all fuel compatible injector, capable of very high flow rates. As such, it will most often be used to deliver E85 to boosted engines, or occasionally, gasoline in extreme high horsepower applications. Neither of these applications requires extended linearity at low flow rates, and so this was given a proportionately lower priority during the design process.
The ID1700-XDS will deliver flawless stoichiometric idle and cruise mixtures on E85, but like the ID2600-XDS, should not be expected to do so on gasoline.
If you need flawless drivability on gasoline, the ID1300-XDS will provide this, and is capable of approximately 150hp per injector on E85.
Nominal Flow Rate – 1725cc/min @ 3.0 Bar (43.5 psi) Using Iso-Octane at 52 Degrees C (125 Degrees F)
Maximum Differential Fuel Pressure – 7.0 Bar (101.5 psi)
Fuel Compatibility – Compatible with Methanol/Ethanol/All Known Hydrocarbon Fuels.
Electrical Connector – USCAR
